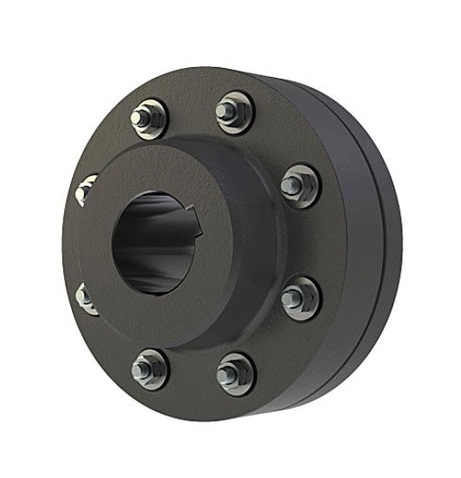

Radicon Elflex Pin And Bush Style Couplings
Radicon Elflex Pin and Bush Style Couplings are flexible couplings designed to transmit torque between shafts, especially when some misalignment is present. These cushioned drive couplings use rubber bushes to absorb shocks, ensuring smooth torque transmission. The barrel-shaped bushes ensure even load distribution, minimizing bending moments due to radial forces. Made from natural rubber with a hardness of 72° Shore A, these couplings provide reliable performance under various operating conditions.
Elfex Options
Elflex EFC - Standard
|
Unit Sizes |
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17 |
|
Torque Capacity |
Max 27000 Nm |
|
Bore Size range |
28mm - 195mm |
Elflex FC - Large
|
Unit Sizes |
630, 710, 800, 900, 1000, 1120, 1250, 1400, 1600 |
|
Torque Capacity |
Max 430000 Nm |
|
Bore Size range |
120mm - 460mm |
Elflex FBC - Brake Drum Couplings
|
Unit Sizes |
100, 150, 160, 200, 250, 300, 315, 400, 450, 500 |
|
Torque Capacity |
Max 9800 Nm |
|
Bore Size range |
16mm - 135mm |
|
Drum dia |
100mm – 500mm |
Elflex Pin And Bush Style Couplings Catalog
